Insersora KAYO SMD D2V - Pick & Placer - Protótipos e Baixa Produção

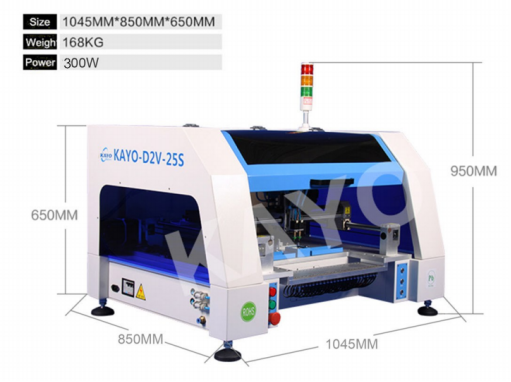

Product Dimensions:

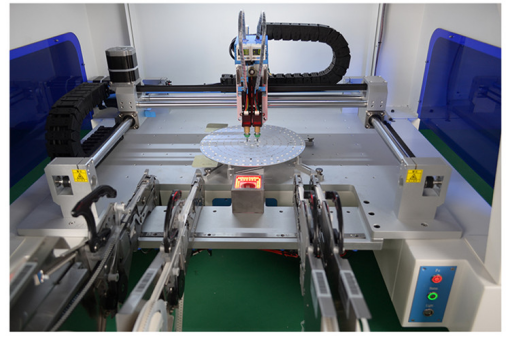

Product Details:
Product Feature:

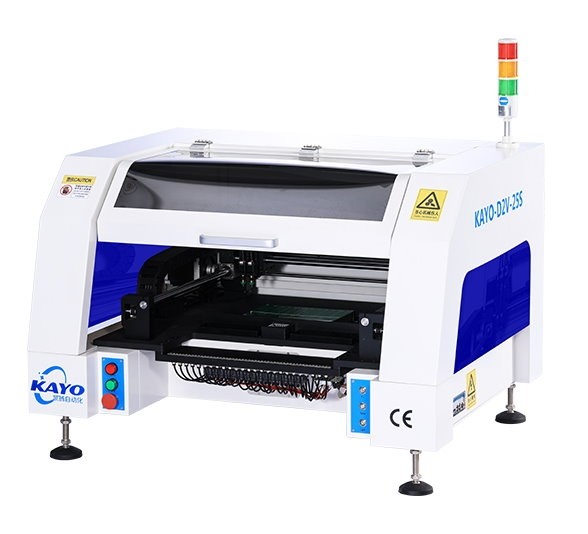

KAYO-D2V-25S is the classic of desktop dual-head SMT pick and placement machine. High precision, more reasonable mechanical design, easy operation, stable running, adapting air-operated feeder, automatic vision system, automatic detection materials shortage. Suitable for mounting most of the SMD components, such as 0402 0603 0805 1206 1210 3528 5050 SOP QFN, etc.
- Drawer type computer and driver integrated, could pull out lightly, convenient for later maintenance.
- Disassembled chassis, easy to handling.
- HD industrial camera, precisely identify 0402, 15*15mm and other electronic chips.
- Intelligent remounting design, when pick materials failed, software will instruct to continue mounting no-stop, record and unify remounting. It could improve the mounting efficiency.
- Component auxiliary box design, make components programming and position revising more precisely.
- Software is easy to understand and use, free upgrade permanently.

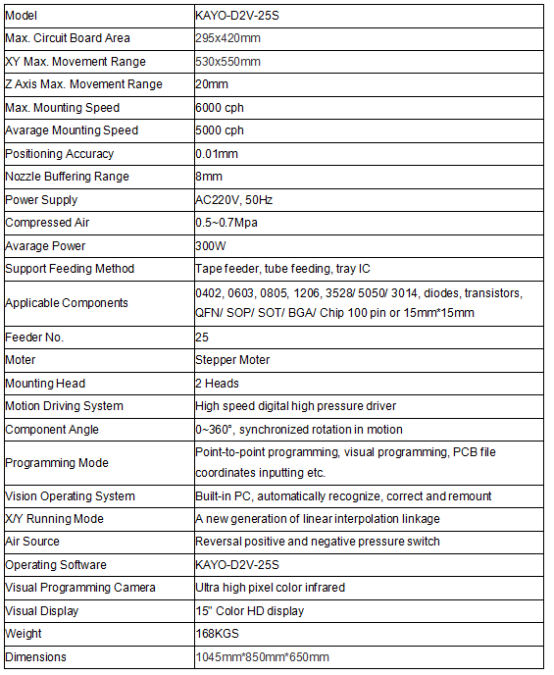

Product Parameters:
Recommended Production Line:

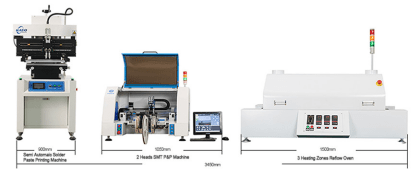

Linha 1:

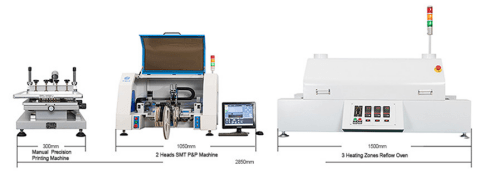

Linha 2:
